SOTO-YD1 Air Purifier

All-metal construction is solid and durable. Integration of multiple purification and disinfection technologies efficiently deliver clean air. Washable metal pre-filter and electronic cell can be cleaned and reused to reduce replacement cost.
Multi-stage air purifying and disinfection technologies efficiently deliver clean air
YD1 combines multiple air treatment technologies to capture the widest range of indoor pollutants. This professional-grade air purification system not only kills airborne bacteria and viruses but also removes harmful solid and gaseous pollutants.
Multi-stage air purifying and disinfection technologies efficiently deliver clean air
Multi-stage air purifying and disinfection technologies efficiently deliver clean air
Plasma electrostatic adsorption device destroys pathogens
Plasma electrostatic adsorption device destroys pathogens
Measurements and calculations of plasma temperature and density in the discharge area proved that the plasma electrostatic adsorption device can effectively destroy all pathogens in the air. The charge leakage index of each monitoring point was less than 0.5, within the measurement error range, proving no plasma charge leakage was detected.
Simple control system
Simple control system
YD1 has a simple control system with clear display of unit settings. The unit can be operated by pressing buttons. The timer button can set the running time- 2h, 4h, 8h and cycles setting. The air speed button can set the air speed - low, medium, high mode and Auto operation mode.
Multi-stage air purification technologies
Multi-stage air purification technologies
The multiple air purification and disinfection technologies efficiently provide clean air. Washable metal pre-filter and electronic cell can be cleaned and reused to reduce replacement cost.
UV-PCO system destroys a wide range of pollutants
UV-PCO system destroys a wide range of pollutants
YD1 is equipped with two UV lamps and photo catalytic filters. UV light destroys all microorganisms, and its irradiation on photo catalytic filters generates strong oxidizing free radicals that decompose harmful pollutants in the air.
Safely purify and disinfect the air in human presence
The primary air purification components are the two-stage electronic cell and the UV-PCO system. The unit can safely function around people. Washable metal pre-filter and electronic cell can be cleaned and reused to reduce replacement cost.
Safely purify and disinfect the air in human presence
Safely purify and disinfect the air in human presence
Simple control panel
Multi-stage air filters
Simple control system with clear display of unit settings. The unit utilizes multi-stage air purifying technologies that work together to clean, purify and re-energize the indoor air.
Simple control panel<br/>Multi-stage air filters
Top air outlet and control panel
Metal housing and caster
Multi-stage filters and UV-PCO system
Top air outlet and control panel
Allows air to spurt out the top with simple operation.
Metal housing and caster
Durable unit housing and easy to move from place to place with its casters.
Multi-stage filters and UV-PCO system
The unit uses multiple air treatment technologies-Pre filter, Two-stage electronic cell, Activated carbon filter, UV-Photo catalytic system and Negative ion generator.
Top air outlet and control panel
Metal housing and caster
Multi-stage filters and UV-PCO system
Top air outlet and control panel
Allows air to spurt out the top with simple operation.
Metal housing and caster
Durable unit housing and easy to move from place to place with its casters.
Multi-stage filters and UV-PCO system
The unit uses multiple air treatment technologies-Pre filter, Two-stage electronic cell, Activated carbon filter, UV-Photo catalytic system and Negative ion generator.
Fan motor system
Fan motor system
Utilizes brushless motor and double fan.
Remote control
Remote control
Simply operate by using remote control.
Washable filters
Washable filters
The Pre-filter and electronic cell can be cleaned and reused.
Release negative ions
Release negative ions
Make indoor air feel more pure and clean.
Full compliance with the Technical Standard for Disinfection of China
Run the unit with negative ion turning on for 1 hour at the maximum speed in a 60m³ space, three repeated tests have all achieved the natural bacteria extinction rate of more than 90% for indoor air. It meets the requirements of disinfection by the "Technical Standard for Disinfection" (2002 Edition) - (Report No. 2018FM08780R01a)
Full compliance with the Technical Standard for Disinfection of China
Full compliance with the Technical Standard for Disinfection of China
Trusted expertise, trusted brand
YD1 combines multi-stage air purification and disinfection technologies to provide healthier air. YD1 has excellent performance in hospitals, medical Labs and dental clinics to clean and sterilize the indoor air.
hospita
hospita
school
school
SOTO premium air purifier, trusted by medical professionals
YD1 is a classic air purifier with electrostatic adsorption technology. With a simple design style, all-metal construction and an easy operating system, YD1 has been preferred by domestic and foreign healthcare workers.
SOTO premium air purifier, trusted by medical professionals
SOTO premium air purifier, trusted by medical professionals

Specifications

  • Product name
    SOTO-AE/ Code300T Air Purifier
  • Model No.
    SOTO-AE/ Code300T
  • Model Abbr
    SOTO-YD1
  • Power
    220V, 50Hz
  • Power Req
    60W
  • UV Lamp
    2x6W
  • Negative Ion
    3x10⁶/cm³
  • Applicable Area
    44m²
  • CADR
    P-CADR=369m³/h
  • Operation
    Button operation/ Remote control

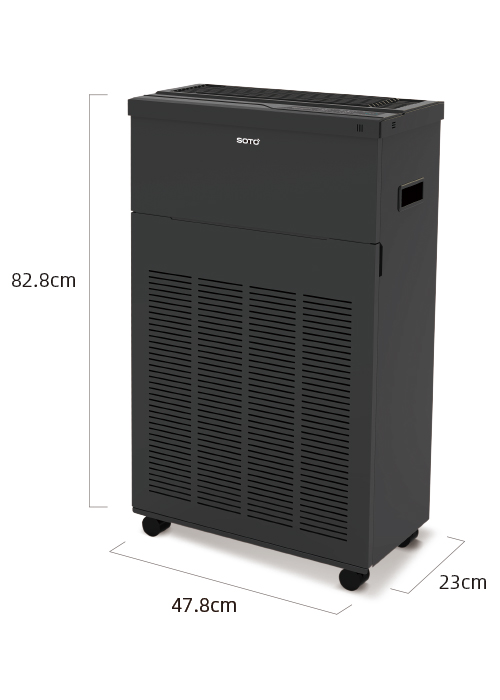

  • Dimensions
    W47.8cmx D23cmx H82.8cm
  • Weight
    26.8kg
  • Colour
    Black
  • Power Cord
    3m
  • Guide
    Operate the unit for 1 hour at high air speed in 60m³ indoor space, with UV and negative ion turning on
  • Main Parts
    Metal Pre filter/ Two-stage electronic cell/ Activated carbon filter/ UV-Photo catalytic system/ Negative ion
